    Automatic Half Height Electric Turnstile Entrance Access Control Fault Detection

    Ask Lasest Price
    Brand Name : WEJOIN
    Model Number : WJTS112
    Certification : ISO 9001:2008,CE,
    Price : negotiation
    Payment Terms : T/T,Western Union
    Supply Ability : 1,000 set/month
    Delivery Time : 3-15 days depending on the quantity
    • Product Details
    • Company Profile

    Automatic Half Height Electric Turnstile Entrance Access Control Fault Detection


    Automatic Half Height Electric Turnstile Entrance Access Control Fault Detection


    Quick Detail:


    1. Name;Automatic Tripod turnstile
    2. Frequency:50/60HZ
    3. Working environment:Indoor / Outdoor (Shelter)
    4. Driving Motor:DC Motor
    5. Application: BRT station
    6. Power Supply:220V±10%, 110V±10%
    7. Housing material:Stainless Steel 304/ Iron with Powder
    8. Rotating Direction:Double Direction

    Function and Features:


    1.Special wheel mechanism is used here to realize the function of fixing and also unfixing all the parts of the turnstile
    2.All the system runs stable with little noise and no mechanical impact
    3.Equipped with automatic fault detection, easy to maintain and use
    4.Several ways of working molds can be chosen at your request
    5.It can work bi-direction, or one direction permitted, one forbidden, or one direction charged, one for free, and all the working molds can be set by the buttons in the main control board
    6.Beam falling and lifting can be controlled in far distance so to satisfy the special requirement of the users and the request of fire protection
    7.The arm will automatically drop when power-off
    8.It has the standard electrical interface which can be connected with various kinds of reader and writer equipment
    9.The number of the persons who have passed by can be counted automatically which can also be displayed in LED
    10.So all the functions can be realized in one integration machine and can be controlled and managed by the computer in the far distance

    11.Direction-guide lights are in the turnstile to tell you which direction can go or which cannot
    12.1.After reading the card, if the person who punched the card does not pass it within the set time, then this chance to access will be canceled, and the set time can be changed according to your request
    13.The number of the persons who can pass by the turnstile can be set to meet the requirement of some special occasions
    14.You can set the function with or without card-reading memory according to your requirement

    Specifications:


    Model
    Item
    WJTS122WJTS112WJTS110WJTS111
    Manual, Semi or Full-automaticFull-automatic
    Material of Housing304 Stainless SteelIron with Powder
    Thickness of Housing1.50mm
    Dimension of Housing
    (L×W×H mm)
    420×380×10001235×280×10001235×280×1000420×380×1050
    Length of Pole (out of housing)490mm
    Net Weight50kg70kg70kg45kg
    Power Supply220V±10%, 110V±10%
    Driving Force of Pole3KG
    Rotating DirectionDouble Direction
    Transit Speed30~40 persons/min
    Frequency50/60HZ
    Working Voltage of MotorDC12V
    Rated Power50W
    Driving MotorDC Motor
    Input InterfaceDC12V electrical leveel signal, more than 100ms,
    or DC12V impulse signal driveing current, more 10mA
    Max Load-bearing of Pole80kg
    Working Temperature-40°C~55°C
    Working EnvironmentIndoor / Outdoor (Shelter)
    Relative Humidity≤95%

    Applications:


    The tripod turnstiles can be used in places such as restaurants, hotels, office buildings, museums, gyms, clubs, metros, bus stations, high class communities, intelligent buildings, hotels, subway stations and other high level venues, ect.


    After-sale Service:


    1 year warranty

    Lifetime Service with charge accordingly

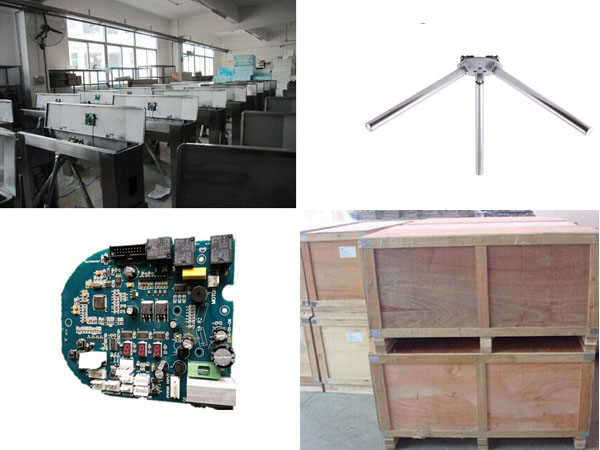

    Detail Preview:

    • Barrier Gate Core:Simple and easy understand
    • Arm:beatiful and convient
    • Control Board:Fully-function
    • Workshop:Scale and standard
    • Product Assembly:Seed and safe
