    Auto Glass Lane Swing Barrier Gate for High Level Areas with read card

    Ask Lasest Price
    Brand Name : WEJOIN
    Model Number : WJTB301
    Certification : CE,ISO
    Price : negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 50set / week
    Delivery Time : 1-15 Days Depend on Quantity
    • Product Details
    • Company Profile

    Auto Glass Lane Swing Barrier Gate for High Level Areas with read card

    Auto Glass Lane Swing Barrier Gate for High Level Areas with read card


    Swing Barrier Gate Functions and features
    1. a compact electro-mechanical design with an exquisite rotating plate and self-lock mechanism.
    2. automatic detection for malfunction
    3. input interface for dry contact and switch signal available for Simple integration of all common access control system.
    4. adjustable auto-delay closing
    5. infrared photocells for safety access
    6. alarm for unauthorized access and no access against passenger flow
    7. anti-reversing passing
    8. auto closing when power on
    9. auto open and free access when power off
    10. adjustable access directions
    11. emergency interface available
    12. traffic light indicating passenger access


    Swing Barrier Gate Technical data

    Material of Housing304 Stainless Steel
    Material of Swing DoorPlexiglass
    Dimension of housing1500*120*1009mm
    Mechanism dimensionø108*450mm
    Max Width of Passage600mm
    Motor Materialsteel and aluminum alloy
    Transit Speed30-40 persons/min
    Power SupplyAC 220V±10%,AC 110V±10%
    Frequency50/60Hz
    Working voltage of motorDC24V
    Time for opening or closing1sec
    Starting time after power on3sec
    Working temperature-25℃ ~ +50℃
    Working environmentIndoor/Outdoor (with shelter)
    Relative humidity≤95%, no condensation

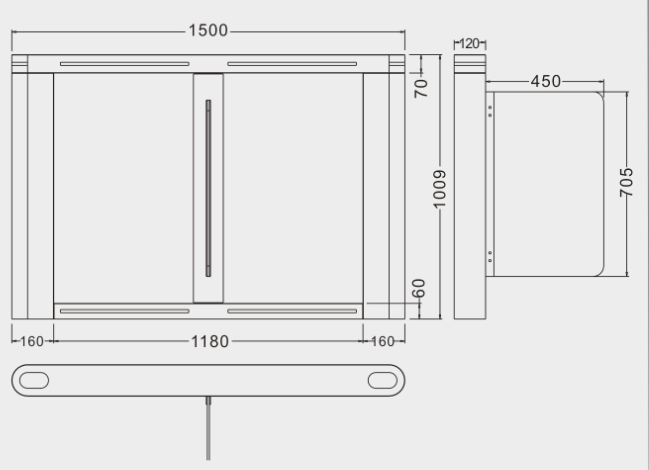

    Swing Barrier Gate Housing Dimension:

    Swing Barrier Gate MACHINE CORE

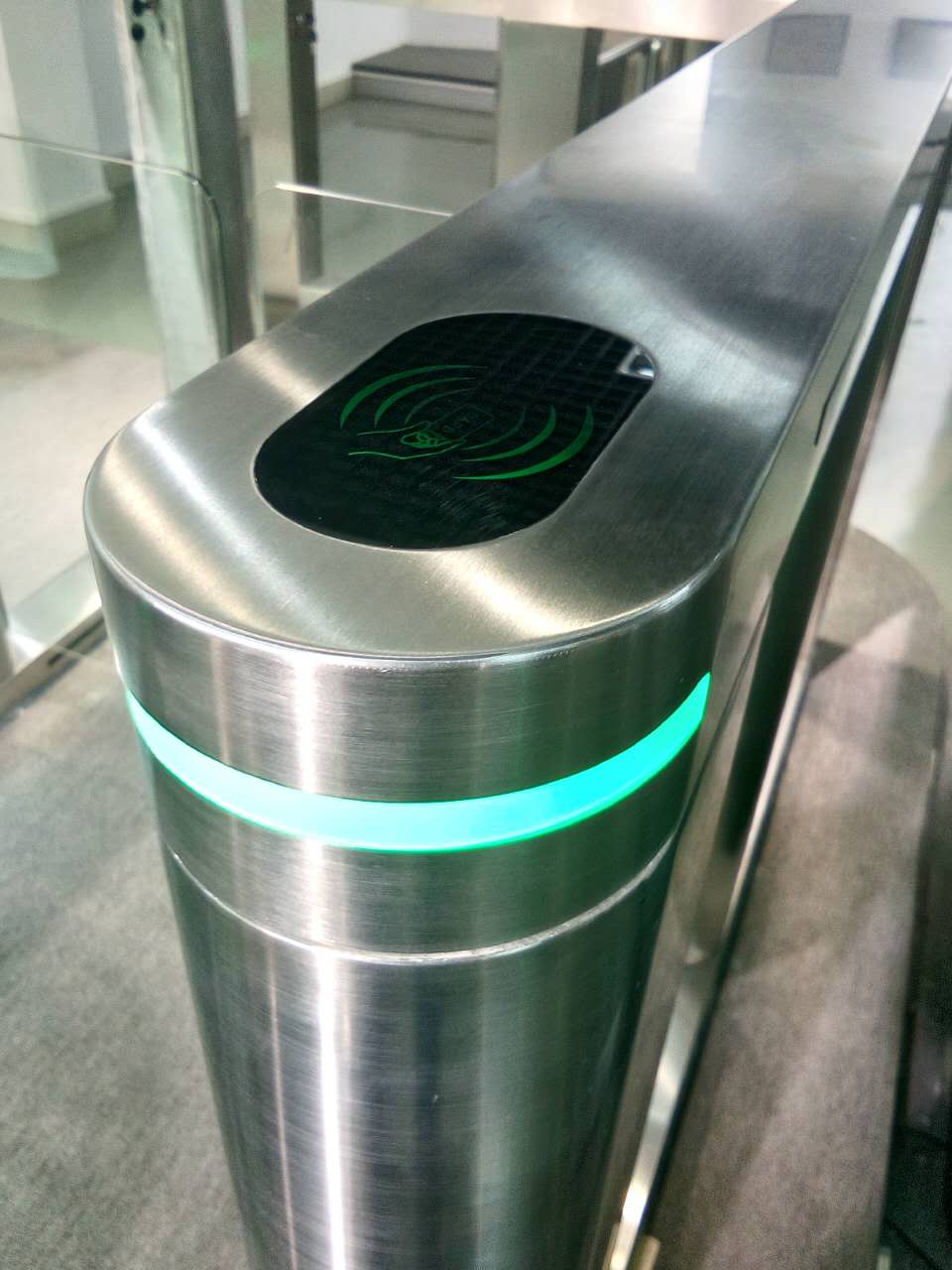

    Swing Barrier Gate Product detail
