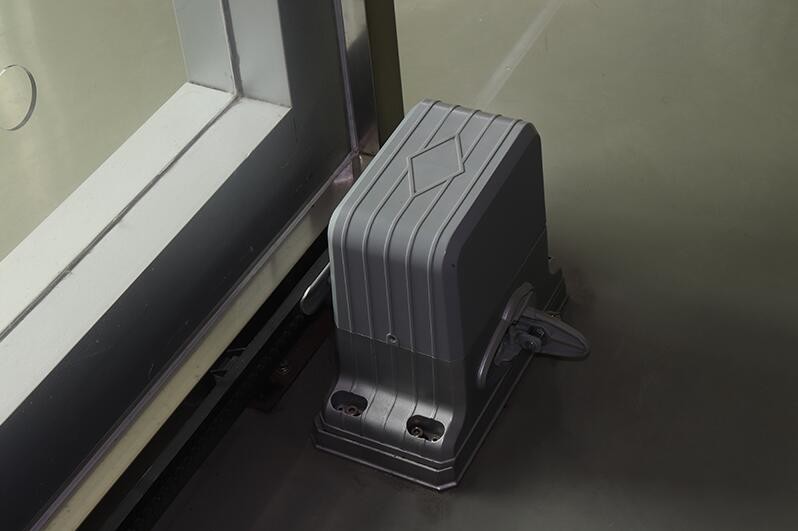

auto gate motor for opener sliding photocell sensor optional

Function And Features:

1. Anti-collision design: when the door body travel is completed, only after press reverse key, the motor can

be activated so that the over-travel can be avoided.

2. Power-off lock preserve function: when use remote controller to set the manual keyboard, only the remote

controller can unlock, power-off is also.

3. Motor time protection: the default value is 90s in order to avoid motor continuously working when travel is out

of order for long time.

Motor Data

Model: KMP 202

Voltage: 220V±10%, 110V±10%

Frequency: 50/60Hz

Current: 2.7A, 5.8A

Motor voltage: AC 220V/110V

Power: 350W

Torque: 35nm

Motor number: M=4

Electronic Data

Model: KMP202

Soft start: YES

Stop on obstacle (sensitivity adjustable): YES

Auto warming-up (at freezing temperature): YES

Remote control: 418MHz (50m, approx)

Wire control: Available

Auto closing: YES

Vehicle loop detector socket: YES

Photocell socket: YES

Alarm light socket: YES

Rack installation
Make the gear of the gear rack towards the floor. Make the gear of the rack fit the gear of the motor. Fasten the gear rack to the door with the screws. Push the gate and make it move the whole route Fasten the gear to the gate after assuring that the gate run smoothly the whole route.
Rack is usually installed piece after piece. To avoid dithering or blocking, please adjust the gap of the gear rack. We suggest one way( refer to Fig-3): fix up the rack1 and rack after adjusting the two racks with the small adjusting rack.

Packing list
