    Automatic Access Control Barrier Gates Parking Safety System Flap Barrier 120W

    Ask Lasest Price
    Brand Name : WEJOIN
    Model Number : WJDZ801
    Certification : CE ISO SGS
    Price : US $ 300 - $340/Set
    Payment Terms : T/T
    Supply Ability : 10000 sets/month
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

    Automatic Access Control Barrier Gates Parking Safety System Flap Barrier 120W

    Automatic Access Control Barrier Gates Parking Safety System Flap Barrier 120W

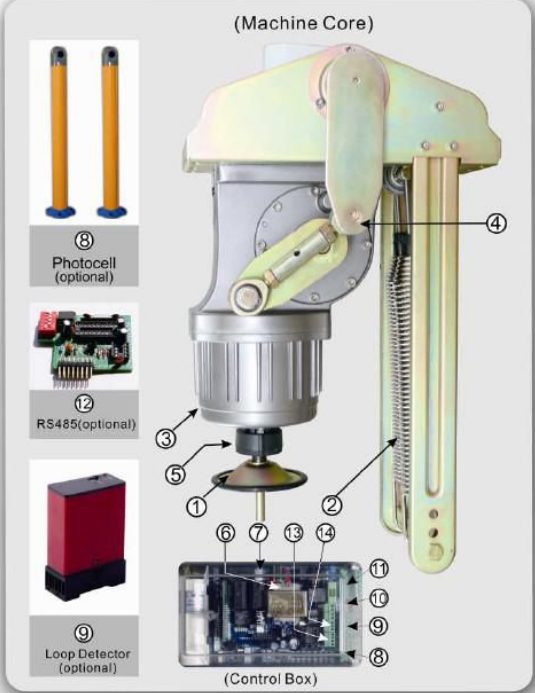

    Main Features

    1. Open the gate by the motor wheel when power off and automatic locking when power on

    2. Balance boom running with a motor transmission of cranks and shafts

    3. Remote control to operate the barrier gate

    4. Auto reverses when the boom meets obstacles

    5. Infrared photocells interface is available

    6. Loop detector interface is available

    7. Well integrated with car parking system equipment, with wire control (push button)

    8. Interface for the traffic light

    9. Installation on both sides (left or light)

    10. Auto-delay when closing (adjustable)


    Working environment and data

    1. Mechanism temperature -25℃+85℃

    2. Control board temperature -20+85℃

    3. Power supply 220V±10% 50/60 Hz

    110V±10% 50/60 Hz

    4.Rated power 120W

    5.Relative humidity ≤90%

    6.Remote control ≥30M

    7.Net weigh 60 Kg

    8. Max boom length:6m

    9. Motor rotational speed:6s


    Model No.

    Open/Close Speed

    Max Boom Length

    Boom-Type

    WJDZ801-16

    6 seconds

    6m

    Straight boom

    WJDZ801-13

    3 seconds

    4.5m

    Straight boom

    WJDZ801-115

    1.5 second

    3m

    Straight boom

    WJDZ801-26

    6 seconds

    5m

    90 degree, Articulated boom

    WJDZ801-23

    3 seconds

    3m

    90 degree, Articulated boom

    WJDZ801-36

    6 seconds

    5m

    180 degree, Articulated boom

    WJDZ801-33

    3 seconds

    3m

    180 degree, Articulated boom

    WJDZ801-46

    6 seconds

    4.5m

    Two-level, fence boom

    WJDZ801-56

    6 seconds

    4m

    Three-level, fence boom
