    Automatic Intelligent Waterproof Access Control Turnstile Parking Lot Application

    Ask Lasest Price
    Brand Name : WEJOIN
    Model Number : WJDZ102
    Certification : CE, ISO,
    Price : US $440-$540.00 / Units
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 10000 units / month
    Delivery Time : 1-20 days
    • Product Details
    • Company Profile

    Automatic Intelligent Waterproof Access Control Turnstile Parking Lot Application

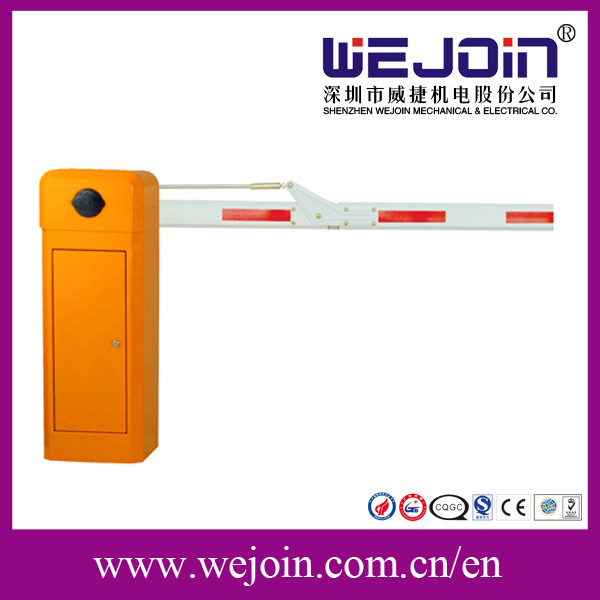

    WEJOIN BARRIER GATE DZ102


    Shenzhen Weijoin Mechanical&Electrical Co. was founded in 2004. It is the first national high-tech enterprise speciallized in research and development, manufacturing and sales of intelligent access control products in China. As one of the Brand Business Enterprises of Guangdong province, WEJOIN so far is also one of the largest manufacturers in access control and management product. Its main products include automatic barrier gate, tripod turnstile, flap barrier, swing barrier, etc.

    The WEDZ102 barrier gate, which manufactured by our company, adopt the latest automatic technology and intelligent design ahead in this field. Meanwhile our barrier gates have the advanced design, such as humanization clutch device, balance device(e.g), which makes our barrier gate work more safely and conveniently. This barrier gate is suitable for indoor as well as outdoor parking area, Parking lots, toll gate, goods yard, railway crossing, commercial premises, apartment block access shopping malls, hospitals, stadiums, business centers,etc.



    Communication with customers


    Q: What's WEJOIN monthly production capacity for barrier gate?
    A: 10000 units.

    Q: As for the over-heating problem of barrier gate
    A: WEJOIN barrier gate has motor cooling fan which can solve the problem of over heating-protection. WJDZ601 and WJDZ701 don't have motor cooling fan, but the aluminum alloy housing of WJDZ601 can make the heat radiate quickly, and there’re shutters on the housing to let wind in.

    Q: Sometimes, Why the barrier boom would open automatically?
    A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.
    Q: What’s the remote control distance?
    A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. WEJOIN recommends using the remote control within 30 meters or 50 meters.

    Applications:


    Quick Detail:

    Name: High Speed Barrier Gate ,
    Application : Highway toll
    Certificate: CE, ISO,
    Net Weight:60KG
    Voltage: AC220V, AC110V
    Rated Power:80W
    Speed: 1 second
    Feature: Manual release


    Technical Data

    ModelWJDZ102
    Working Temperature-40℃~+75℃
    Voltage220V±10%, 110V±10%, 50/60HZ
    Rated power80W
    Relative humidity≤90%
    Remote control distance≥30m
    Net weight60kgs
    Speed1S
    Max boom length3 meters

    Model Selection and Differences

    ModelBoom ShapeMax Boom LengthSpeed
    WJDZ10116
    WJDZ10216
    Straight boom6m6 seconds
    WJDZ10113
    WJDZ10213
    Straight boom4.5m3 seconds
    WJDZ10111
    WJDZ10211
    Straight boom3m1 second
    WJDZ10126 WJDZ1022690 degree, Articulated boom5m6 seconds
    WJDZ10123 WJDZ1022390 degree, Articulated boom3m3 seconds
    WJDZ10136 WJDZ10236180 degree, Articulated boom5m6 seconds
    WJDZ10133 WJDZ10233180 degree, Articulated boom3m3 seconds
    WJDZ10146 WJDZ10246Two-level, fence boom4.5m6 seconds
    WJDZ10156 WJDZ10256Three level, fence boom4m6 seconds

    Functions & Features
    1) Manual realease
    2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking;
    3) Die-casting aluminum alloy motor, precision and good at thermal radiating;
    4) Motor cooling fan, solving the problem of heat-protection;
    5) Double safety limitswitches (photoelectricity limit switch/motor memory sensor);
    6) Reversing on obstacle;
    7) Auto-closing;
    8) Support the In frared Photocell for anti-bumping function(optional);
    9) Support the external and internal Vehicle Loop Detector;
    10) Traffic light interface;
    11) Wire Control ( switch signal) / remote control (418 HZ/433 HZ );
    12) RS485 Communication module (optional).

    Why to choose WEJOIN High Speed Barrier Gate?


    1. High Speed Barrier Gate adopts special machine core, swing away boom holder and boom. This barrier gate runs in high speed but stably. The running time is 1 second. It can be used for highway toll.
    2. High Speed Barrier Gate uses swing away boom holder. The boom is out of the holder when it is hit, which protects the barrier core and prolong lifetime of the barrier.
    3. High Speed Barrier Gate uses the first generation motor. It is stable and has long service life performance, running 3 million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used in door and outdoor.
    4. The barrier core is special and main parts are aluminum alloy casting. The barrier gate will automatically reverse when the boom meets the obstruction. The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrian and vehicles. Manual release device can operate the barrier when power failure.
    5. WEJOIN has sub-companies to produce and process almost accessories. Besides standard producing, we offer OEM service in the meanwhile.


    Automatic Intelligent Waterproof Access Control Turnstile Parking Lot Application
