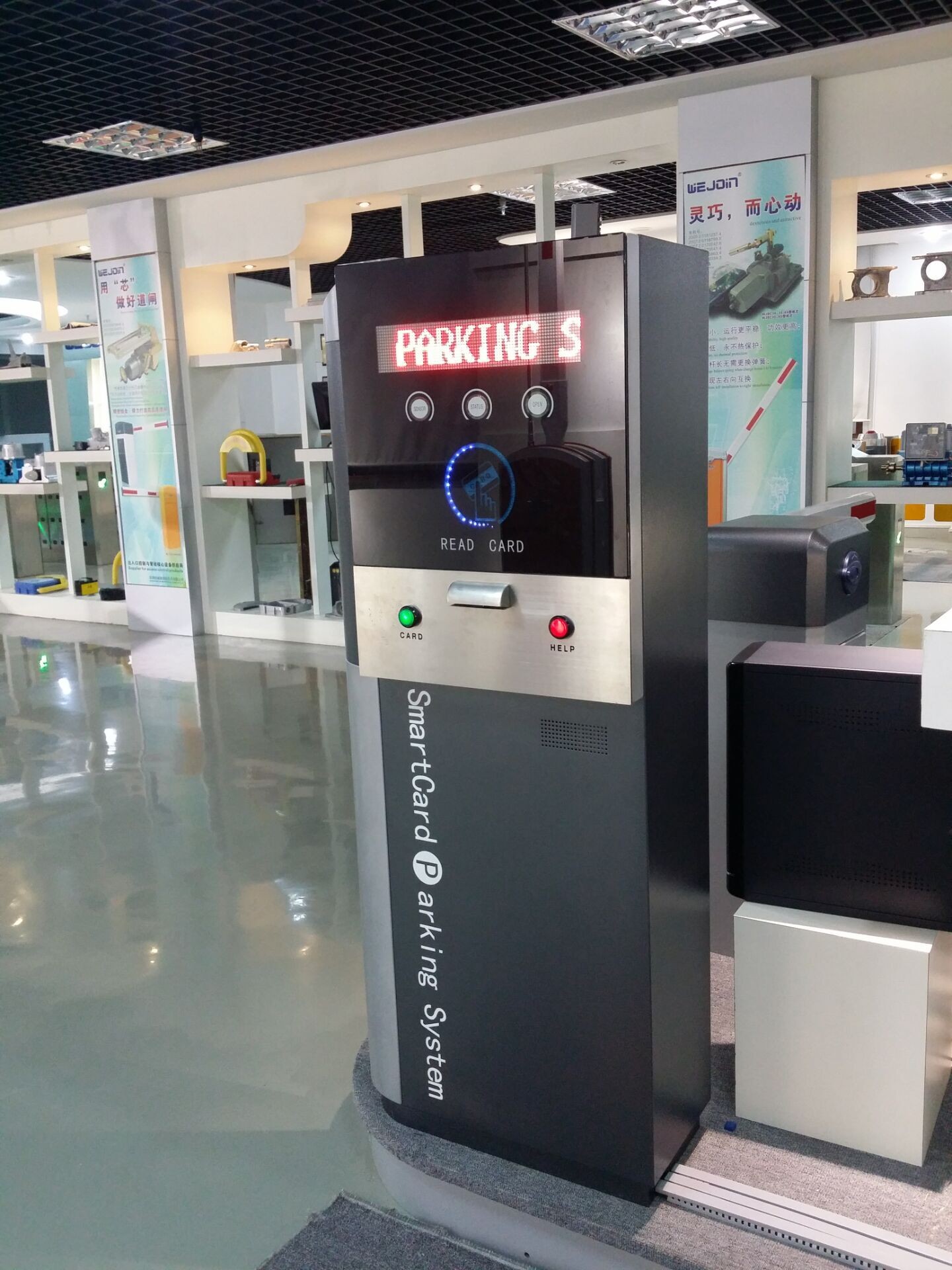

Custom Ticket Dispenser access control barrier Parking Lot Arm Gate

Applications:

Barrier Gate with rubber boom uses the third generation motor. It is stable and has long service life performance, running one million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used in door and outdoor.

Quick Detail:

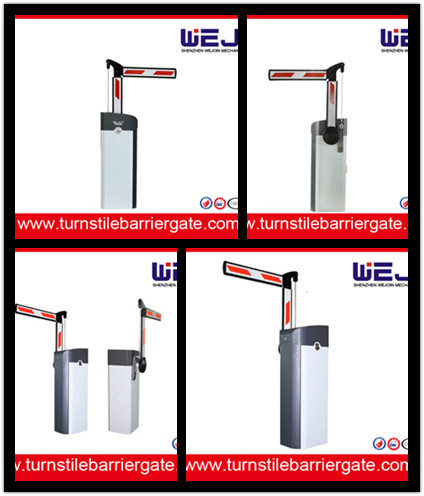

1. Name: Boom barrier gate
2. Application: Ticket dispenser
3. Speed:3/6 second
4. Feature: Loop detector
5. Rated Power:80W
6. Certificate:CE, ISO,
7. Net Weight:50KG
8. Voltage:AC220V, AC110V

Description:

Model Selection and Differences

Functions & Features:

1. Open the barrier gate by motor wheel when power off and automatic locking when power on

2. Balanced boom running with a motor transmission of cranks and shafts

3. Boom with protective rubber band

4. Interface for traffic light

5. Infrared photocells interface is available

6. Loop detector interface is available

7. Well-integrated with car parking system equipments, with wire control (push button)

8. Offering dry contact signal for car parking system (COM, NC, NO)

9. Auto-reverse when the boom meets obstruction

10. Auto-delay when closing (adjustable)

11. Remote control frequency: 315 MHz, 418MHz, 433MHz

12. Remote control to operate the barrier gate

Specifications

Communication with customers

Q: There is no reaction on the motor when pressing the remote controller buttons,why?

A:(1)Please check whether the power is supplied to the barrier gate orr not

(2)Please check whether the fuse id burnt out or not

(3)Please check whether the code both in the remote controller and the control board are accordant or not

Q: Sometimes, Why the barrier boom would open automatically?

A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.

Q: What's WEJOIN monthly production capacity for barrier gate?

A: 10000 units.

Q: What’s the remote control distance?

A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. WEJOIN recommends using the remote control within 30 meters or 50 meters.

Why to choose WEJOIN 110/220v Barrier Gate For Ticket Dispenser?

1. The barrier core is special and main parts are aluminum alloy casting. The barrier gate will automatically reverse when the boom meets the obstruction. The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrian and vehicles

2. Barrier Gate uses the third generation motor. It is stable and has long service life performance, running one million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used in door and outdoor.

3. Barrier Gate adopts the latest mold casting design, without clutch device. Its machine core adopts connecting rod structure mainly comprised with worm wheel, worm and crank arm. The barrier gate runs stably, and is conveniently maintained.

4. WEJOIN has sub-companies to produce and process almost accessories. Besides standard producing, we offer OEM service in the meanwhile.

Founded in March 2004, Shenzhen WEJOIN is a national high-tech enterprise specialized in R&D, production, and sales of intelligent access control products. It has nearly 200 patented technologies. Its main products including commercial barrier gate, high-grade & mid-grade & eco-grade DC variable-frequency barrier gate, flap barrier, tripod turnstile, swing barrier, speed gate, etc., are suitable for the entry and exit management of vehicles and personnel such as high-speed toll gate, commercial plaza, residential areas, stations, customs checkpoints, etc.

Since 2017, Shenzhen WEJOIN has invested heavily in building intelligent robot production lines. Till now, it has formed nearly 30 intelligent robot production lines for the annual production capacity of 300,000 sets, with more than 160 sets of equipment. WEJOIN is the worldwide biggest production base for barrier gates. It has realized the automation of precisely die-casting, accessories processing, motor assembly, mechanism assembly, whole assembly, and packaging, etc. The comprehensive automation rate is more than 80%, of which more than 90% of the spare parts are produced by intelligent robots, assuring the consistency and stability of the product quality. In the future, Chinese enterprises will step up efforts to high-end manufacturing and high-quality development. WEJOIN will help the industry develop steadily through intelligent products and intelligent manufacturing of “double intelligence”.

WEJOIN has strong innovation and R&D capabilities, ultra-high technology, and craftsmanship, leading the industry into the era of intelligent variable speed interconnection. On September 20, 2021, WEJOIN launched a 3D barrier gate that achieved ultra-high-speed operation in 3D space. This is the industry's first, disruptive innovation, and historic breakthrough, representing WEJOIN's superior technical capabilities. From the birth of the first integrated barrier gate in 2004 to the launch of the 3D barrier gate in 2021, WEJOIN has carried out seven major technological changes of the barrier gate in 18 years, leading the continuous development of technology in the industry.

From raw materials to spare parts, as well to finished products, WEJOIN is currently the only domestic enterprise that adopts large-scale intelligent manufacturing in the entire industry chain. With the industry 4.0 standard as the goal, WEJOIN will realize informationized and unmanned production, continue to increase the development of new technology and the investment of intelligent automation equipment for barrier gates, improve the manufacturing accuracy, operating life, and stability of the barrier gates, and make them more convenient, more intelligent and more reliable.

Technological innovation, product quality, and manufacturing capabilities are the driving force of WEJOIN's continuous development. Brand, channels, and after-sales service are the pillars of WEJOIN's long-term development. WEJOIN has established sales and service organizations in more than 30 provinces and cities across China, providing high-quality products and services to more than 3,000 distributors and system vendors. WEJOIN products are sold all over the world. It has set up agency service outlets in more than 100 countries and regions including Mexico, Brazil, Britain, Malaysia, Turkey, Israel, India, Thailand, South Africa, etc. It is the largest barrier gate manufacturer in China with the largest export volume.

With superior product quality and a high-quality after-sales service system, "WEJOIN" has become a world-renowned brand of barrier gates. Stay true to the original aspiration, work hard, make every product with hearts, and build trustworthy WEJOIN quality in the world.
