    Straight Folding Boom Parking Gate Arm Road Automatic Vehicle Barriers

    Ask Lasest Price
    Brand Name : WEJOIN
    Model Number : WJDZ801
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 6000 sets/month
    Delivery Time : 3-7 days
    • Product Details
    • Company Profile

    Straight Folding Boom Parking Gate Arm Road Automatic Vehicle Barriers

    Straight Folding Boom Parking Gate Arm Road Automatic Vehicle Barriers


    Functions & Features


    1. Open the gate by motor wheel when power off and automatic locking when power on

    2. Balance boom running with a motor transmission of cranks and shafts

    3. Remote control to operate the barrier gate

    4. Auto reverses when the boom meets obstacles

    5. Infrared photocells interface is available

    6. Loop detector interface is available

    7. Well integrated with car parking system equipments, with wire control (push button)

    8. Interface for traffic light

    9. Installation on both sides (left or light)

    10. Auto-delay when closing (adjustable)

    11. Boom with protective rubber band


    Technical Data


    Model

    Item

    80111

    801-13

    801-16

    801-23

    801-26

    801-33

    801-36

    801-46

    801-56

    Running time

    1.5sec

    3sec

    6sec

    3sec

    6sec

    3sec

    6sec

    6sec

    6sec

    Boom type

    straight

    90 degree folding

    180 degree folding

    2fencing

    3fencing

    Max boon length

    3M

    4.5M

    6M

    3M

    5M

    3M

    5M

    4.5M

    4M

    Boom dimension

    45*80mm

    45*100mm

    Boom weight

    3kg

    4.5 kg

    6 kg

    6.5 kg

    8 kg

    9 kg

    11 kg

    7 kg

    7.5 kg

    Voltage

    AC220V±10%, AC110± 10%

    Frequency

    50/60HZ

    Motor voltage

    220V

    Power working temperature

    80W

    working temperature

    -35centigrade~+60centigrade

    Protection degree

    IP44


    Housing and mechanism:


    Straight Folding Boom Parking Gate Arm Road Automatic Vehicle Barriers

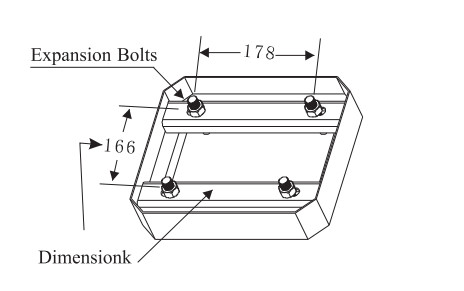

    Barrier case size:


    Straight Folding Boom Parking Gate Arm Road Automatic Vehicle Barriers
