3s 6s Automatic Boom Barrier Gate with Advanced Manual Release

Shenzhen Wejoin Mechanical & Electrical Co.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 3s 6s Automatic Boom Barrier Gate with Advanced Manual Release from wholesalers

    Buy cheap 3s 6s Automatic Boom Barrier Gate with Advanced Manual Release from wholesalers
    • Buy cheap 3s 6s Automatic Boom Barrier Gate with Advanced Manual Release from wholesalers
    • Buy cheap 3s 6s Automatic Boom Barrier Gate with Advanced Manual Release from wholesalers
    • Buy cheap 3s 6s Automatic Boom Barrier Gate with Advanced Manual Release from wholesalers
    • Buy cheap 3s 6s Automatic Boom Barrier Gate with Advanced Manual Release from wholesalers

    3s 6s Automatic Boom Barrier Gate with Advanced Manual Release

    Ask Lasest Price
    Brand Name : WEJOIN
    Model Number : WJDZ601
    Certification : CE ISO SGS
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 10000 sets/month
    Delivery Time : 3-5 working days after payment being received
    • Product Details
    • Company Profile

    3s 6s Automatic Boom Barrier Gate with Advanced Manual Release


    3s 6s Automatic Boom Barrier Gate with Advanced Manual Release


    Technical Data


    NameBarrier GateApplicationParking System
    Speed3/6 secondMax Boom Length6m
    Power SupplyAC220V/AC110VRated Power120W
    Motor Rotational Speed1400rpmProtection DegreeIP44
    Working Temperature-35℃~75℃Humidity≤90%
    Remote Control Distance≤50mBoom Dimension45*100mm
    Net Weight39kgGross Weight44kg
    CertificateCE/ISOBoom TypeOctagonal boom

    Model Selection and Differences


    Model

    Boom Shape

    Max Boom Length

    Speed

    WJDZ60116

    Straight boom

    4.5m

    6 seconds

    WJDZ60113

    Straight boom

    4m

    3 seconds

    WJDZ60126

    90 degree, Articulated boom

    4m

    6 seconds

    WJDZ60123

    90 degree, Articulated boom

    3m

    3 seconds

    WJDZ60136

    180 degree, Articulated boom

    4m

    6 seconds

    WJDZ60133

    180 degree, Articulated boom

    3m

    3 seconds

    WJDZ60146

    Two-level, fence boom

    3.5m

    6 seconds

    WJDZ60156

    Three-level, fence boom

    3m

    6 seconds


    Functions & Features:

    1.Wheel manual release. In case of power off, rotate the wheel manual release on the bottom of the motor to raise the boom manually. When power on, the motor will work normally.
    2.Machine core with strong and double springs, makes the machine core work more steadily.
    3.Die-casting aluminum alloy motor, precise and good at thermal radiation.
    4.Crank and rod structure makes the boom run placidly.
    5.Double safety limit switches (photo electricity limit switch and motor memory sensor).
    6.Reversing on obstacle.
    7.Auto-closing.
    8.Support the infrared photocell for anti-bumping function (optional)
    9.Support external and internal vehicle loop detector (optional)
    10.Traffic light interface (AC220V, can support lamp with 40W)
    11.Wire control (switch signal) /Remote control (418MHZ)
    12.RS485 communication module( optional)
    13.Open, close control interface for parking system
    14.Provide limit state signal for parking system


    Applications


    Barrier Gate with aluminum alloy housing screen uses the third generation motor. It is stable and has long

    service life performance, running one million times. And the barrier can work with parking system very well,

    and can be used in door and outdoor.

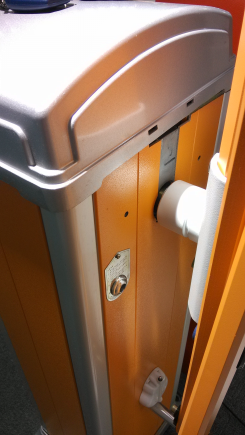

    Advanced Manual Clutch
