    DC 24V Metro Flap Barrier Gate Controlled Access Control Turnstile Gate

    Ask Lasest Price
    Brand Name : WEJOIN
    Certification : ISO
    Model Number : WJTY202
    Price : Negotiation
    Delivery Time : 10-30 days
    Payment Terms : T/T, Western Union
    Supply Ability : 50PCS/week
    • Product Details
    • Company Profile

    DC 24V Metro Flap Barrier Gate Controlled Access Control Turnstile Gate


    DC 24V Metro Flap Barrier Gate Controlled Access Control Turnstile Gate


    Applications:


    High class communities, intelligent buildings, hotels, subway stations and other high level venues.


    Functions and Features:

    • The design is of integration of machinery and electronic structure, with special drive style and reliable machinery auto locking solution, precise worm gear, and cabinet composite structure.
    • Malfunction self-detection. Which is easy for operation and maintenance.
    • Flap work synchronously.
    • Flap auto reversing when meeting exterior force.
    • Audible and visual alarm in case of unauthorized access.
    • Auti-reverse passing
    • Operational mode can be set up through the built-in menu on the control board.
    • Auto reset function, after the flap open if no pedestrian passes in a fixed time, the system will cancel the order and the auto-reset time is adjustable.
    • Flaps open when power off, and auto-close when power on.
    • Compatible with diverse access control devices.
    • Pedestrian flow directions can be single or double directions.
    • Available for two-way traffic lights, which can prompt the state---pass or no-entry.
    • RS232 and LAN sockets are available to connect the computer.

    Specifications:


    ModelWJTY202
    Cabinet dimension1200mm(L)×270mm(W)×1000mm(H)
    Stretching-out flap length275mm
    The max lane width600mm
    Cabinet material304 stainless steel
    Power supplyAC220V±15%, AC110V±15%
    Motor voltageDC24V (brush motor)
    Access device input voltagedry contact or 12V electrical level signal or >100ms 12V impulse signal or driving current >10mA
    Max flow rate30~40 people per minute
    Flap opening/closing time1 sec
    reset time when power on3 sec
    protection gradeIP32
    working environmentoutdoors (with shelter) and indoors.
    working temperature

    -10°C~50°C

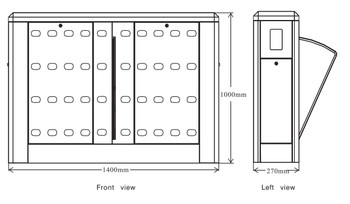

    Dimension:


    DC 24V Metro Flap Barrier Gate Controlled Access Control Turnstile Gate
