    Government, Railway Tripod Turnstile Gate Intelligent barrier with Superb Adaption

    Ask Lasest Price
    Brand Name : WEJOIN
    Certification : ISO 9001:2008,CE,
    Model Number : WJTS112
    Price : negotiation
    Delivery Time : 3-15 days depending on the quantity
    Payment Terms : T/T,Western Union
    Supply Ability : 1,000 set/month
    • Product Details
    • Company Profile

    Government, Railway Tripod Turnstile Gate Intelligent barrier with Superb Adaption


    Government, Railway Tripod Turnstile Gate Intelligent barrier with Superb Adaption


    Function and Features:


    1. Special wheel mechanism is used here to realize the function of fixing and also unfixing all the parts of the turnstile
    2. You can set the function with or without card-reading memory according to your requirement
    3. It can self-check and alarm which will be make it convenient to use
    4. It has the standard electrical interface which can be connected with various kinds of reader and writer equipment
    5. It can work bi-direction, or one direction permitted, one forbidden, or one direction charged, one for free, and all the working molds can be set by the buttons in the main control board
    6. All the system runs stable with little noise and no mechanical impact
    7. Beam can be lifted and fall when electricity is cut-off
    8. Several ways of working molds can be chosen at your request
    9. Equipped with RS232 interface, which canbe connected to computers: Cable LAN interface is also equipped communicating with computers
    10. The number of the persons who have passed by can be counted automatically which can also be displayed in LED
    11. Direction-guide lights are in the turnstile to tell you which direction can go or which cannot
    12. Beam falling and lifting can be controlled in far distance so to satisfy the special requirement of the users and the request of fire protection
    13. The number of the persons who can pass by the turnstile can be set to meet the requirement of some special occasions
    14. After reading the card, if the person who punched the card does not pass it within the set time, then this chance to access will be canceled, and the set time can be changed according to your request


    Specifications:


    Model
    Item
    WJTS122WJTS112WJTS110WJTS111
    Manual, Semi or Full-automaticFull-automatic
    Material of Housing304 Stainless SteelIron with Powder
    Thickness of Housing1.50mm
    Dimension of Housing
    (L×W×H mm)
    420×380×10001235×280×10001235×280×1000420×380×1050
    Length of Pole (out of housing)490mm
    Net Weight50kg70kg70kg45kg
    Max Load-bearing of Pole80kg
    Driving Force of Pole3KG
    Rotating DirectionDouble Direction
    Power Supply220V±10%, 110V±10%
    Frequency50/60HZ
    Working Voltage of MotorDC12V
    Relative Humidity≤95%
    Driving MotorDC Motor
    Input InterfaceDC12V electrical leveel signal, more than 100ms,
    or DC12V impulse signal driveing current, more 10mA
    Working Temperature-40°C~55°C
    Driving MotorDC Motor
    Working EnvironmentIndoor / Outdoor (Shelter)
    Transit Speed30~40 persons/min

    After-sale Service:


    1 year warranty

    Lifetime Service with charge accordingly


    Applications:

    The tripod turnstiles can be used in places such as restaurants, hotels, office buildings, museums, gyms, clubs, metros, bus stations, high class communities, intelligent buildings, hotels, subway stations and other high level venues, ect.

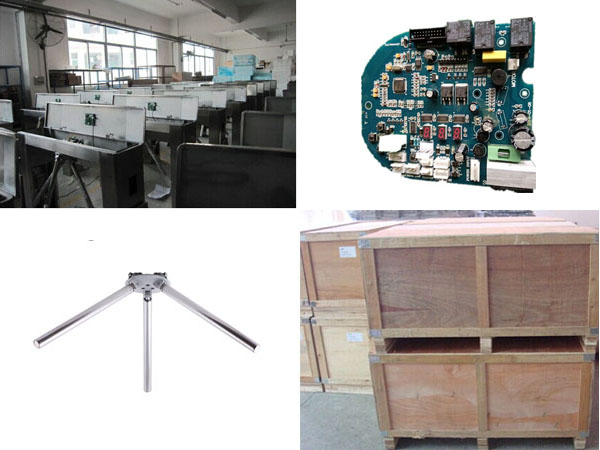

    Preview Detail:


    • Barrier Gate core:motor only with full-automatic
    • Arm:simple and facility
    • High-technology control board
    • Safer packing and protect the goods
