    Intelligent Flap Barrier Gate with Compact Electro-mechanical Design and Adjustable Auto-delay Closing Time

    Ask Lasest Price
    Brand Name : WEJOIN
    Certification : ISO,CE
    Model Number : WJTY201
    Price : negotiation
    Delivery Time : 10-30 days
    Payment Terms : T/T, Western Union
    Supply Ability : 50PCS/week
    • Product Details
    • Company Profile

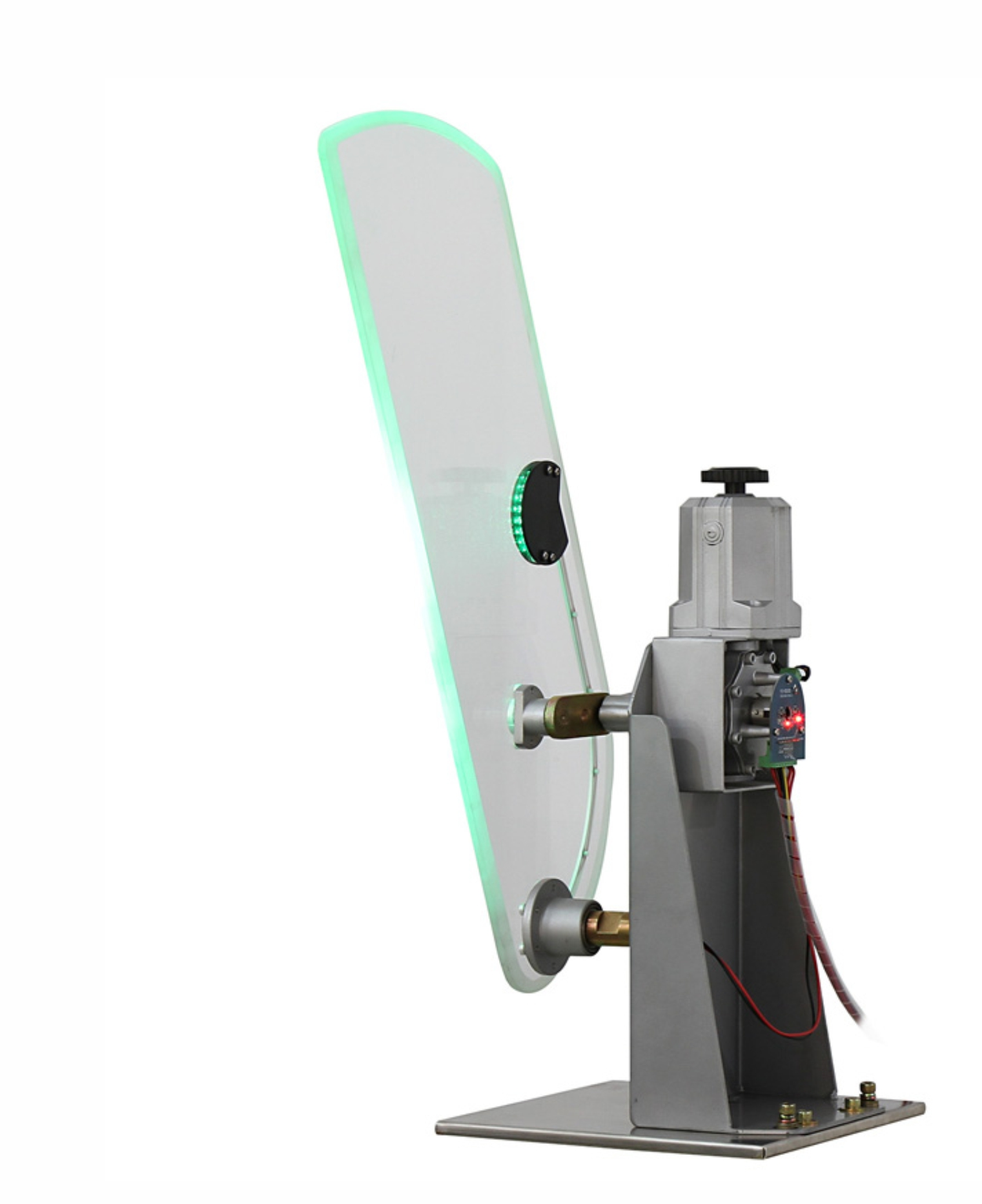

    Intelligent Flap Barrier Gate with Compact Electro-mechanical Design and Adjustable Auto-delay Closing Time

    Intelligent Flap Barrier Gate with Compact Electromechanical Design and Adjustable Auto-delay Closing Time


    Functions&Feature:

    • The whole system runs smoothly, long-life performance, high operation dependability, and fast response.

    • Alarm function, in case of illegal intrusion and reverse intrusion.

    • Infrared sensor to prevent pinch pedestrians.

    • Anti-breakthrough function. The gate is locked automatically until the opening signal received.

    • Anti-trailing function, the turnstile will lock if someone wants to burst in without swiping the RFID card.

    • LED indicator.

    • Automatic reset function. If the user fails to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.

    • When power off, the optical turnstile will open automatically, which is complying with fire safety requirements.


    Products Series:

    Model
    Item

    WJTY201

    WJTY301

    WJTY311

    Material of Housing

    304 Stainless Steel

    The material of Flap Door

    Organic Glass, Resin, or PVC

    Dimension of housing

    1200*270*1000

    1450*315*1020

    1400*305*1020

    Thickness of housing

    1.5mm

    Max Width of Passage

    600

    900

    900

    Net weight

    70kg

    140 kg

    85 kg

    Normal Life Span

    3 million times

    Communication Interface

    Standard RS485(distance less than 1200 meters)

    Transit speed

    30-40 persons/min

    Power supply

    220V±10%, 110± 10%

    Frequency

    50/60HZ

    The working voltage of the motor

    DC24V

    Time for opening or closing

    1s

    Starting time after power on

    3s, adjustable

    Input interface

    Dry contact signal or +12Vor pulse signal with width more than
    100ms DC12V

    Transit speed

    25~32 persons/min

    Working temperature

    -10°C~50°C

    Working environment

    Indoor / Outdoor (Shelter)

    Relative humidity

    ≤95%, no condensation
