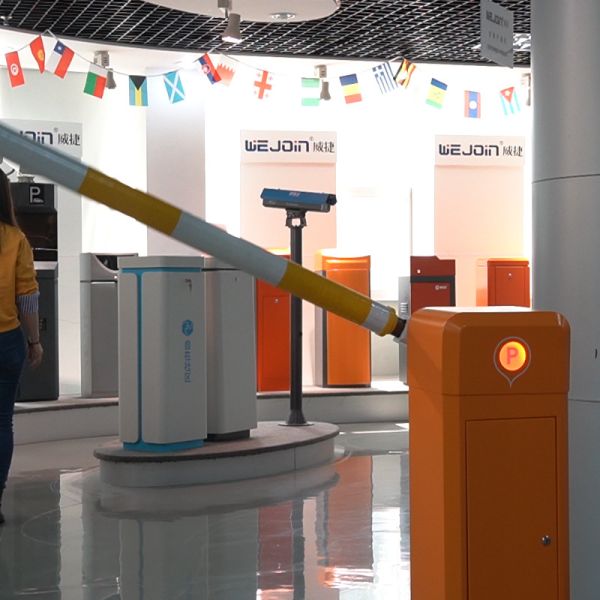

    Bus Station LED Intelligent Boom Barrier Gate Entrance Gate Security Systems

    Ask Lasest Price
    Brand Name : WEJOIN
    Certification : CE, ISO,
    Price : negotiation
    Delivery Time : 3-15 days depending on the quantity
    Payment Terms : T/T, Western Union
    Supply Ability : 1, 000 set/month
    Model Number : WJDZ102
    • Product Details
    • Company Profile

    Bus Station LED Intelligent Boom Barrier Gate Entrance Gate Security Systems


    Bus Station LED Intelligent Boom Barrier Gate Entrance Gate Security Systems


    Description:


    Model Selection and Differences


    Model

    Item

    WJDZ10213WJDZ10216
    Opening Time3S6S
    Boom TypeStraight, square-shaped
    Boom Length3M4M
    Voltage110V/220V
    Motor/PowerAC/120W
    Working Temperature-35℃ - 75℃
    Protection GradeIP44
    Remote Control Distance30M~100M

    Functions & Features:


    1. Advanced manual release
    2. Boom can rise and fall on left/right side by setting on the same machine
    3. No need to change the balance spring when changing the booms
    4. Adopts the 3rd generation WEJOIN machine core
    5. Supports the infrared photocell for anti-bumping function (optional)
    6. Supports the external and internal vehicle loop detector (optional)
    7. Auto closing
    8. RS485 communication module (optional)
    9. Thermal radiates rapidly, no thermal protection
    10. Die-cast aluminum alloy machine core and advanced double-stage driving motor effectively solve the problem of mechanism block up
    11. Special art and craft makes out the most modernized and fashionable housing
    12. Safety photo electricity limit switch

    13. Boom with LED light (color is changeable with remote control)

    14. Cabinet with traffic light

    15. Remote Control Frequency: 315MHz, 418MHz, 433MHz


    Applications:


    Barrier Gate with LED boom is installed with LED boom, and traffic light on the housing. When the boom rises up, the light turns green; when the boom falls down, the light turns red. Beside the LED, the boom is also installed with rubber below, which not only indicates the transit situation, but also protect vehicle from hitting.


    Specifications


    ModelWJDZ102
    Working Temperature-40℃~+75℃
    Voltage220V±10%, 110V±10%, 50/60HZ
    Rated power120W
    Relative humidity≤90%
    Remote control distance≥30m
    Net weight45kgs
    Speed3S, 6S
    Max boom length6 meters

    Why to choose WEJOIN Bi-directional Barrier Gate?


    1. Barrier Gate with LED boom is installed with LED boom, and traffic light on the housing. When the boom rises up, the light turns green; when the boom falls down, the light turns red. Beside the LED, the boom is also installed with rubber below, which not only indicates the transit situation, but also protect vehicle from hitting.

    2. Barrier Gate with LED boom uses the third generation motor. It is stable and has long service life performance, running one million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used in door and outdoor.

    3. Special barrier core makes its installation direction adjustable. Also he barrier works well with the barrier can be changed booms with different length, without changing its spring. The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrian and vehicles. Manual release device can operate the barrier when power failure.

    4. WEJOIN has sub-companies to produce and process almost accessories. Besides standard producing, we offer OEM service in the meanwhile.


    Communication with customers


    Q: What's WEJOIN monthly production capacity for barrier gate?

    A: 3000 units.


    Q: As for the over-heating problem of barrier gate

    A: WEJOIN barrier gate has motor cooling fan which can solve the problem of over heating-protection. WJDZ601 and WJDZ701 don't have motor cooling fan, but the aluminum alloy housing of WJDZ601 can make the heat radiate quickly, and there’re shutters on the housing to let wind in.


    Q: Sometimes, Why the barrier boom would open automatically?

    A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.

    Q: What’s the remote control distance?

    A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. WEJOIN recommends using the remote control within 30 meters or 50 meters.
