    Automatic Boom Barrier With Compacted Motor And Remote Controller For Parking Lot Area

    Ask Lasest Price
    Brand Name : WEJOIN
    Certification : CE, ISO,
    Model Number : WJDZ107
    Price : negotiation
    Delivery Time : 3-15 days depending on the quantity
    Payment Terms : T/T, Western Union
    Supply Ability : 1, 000 set/month
    • Product Details
    • Company Profile

    Automatic Boom Barrier With Compacted Motor And Remote Controller For Parking Lot Area

    Automatic Boom Barrier With Compacted Motor And Remote Controller For Parking Lot Area​


    Functions & Features


    1. Auto closing realization through menu setting on the control panel
    2. Remote Control Frequency: 315MHz, 418MHz, 433MHz
    3. Manual release device to operate the barrier when power failure
    4. Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation
    5. Motor cooling fan to avoid the over-heating possibility
    6. Automatic reversing when the barrier boom meets the obstruction
    7. Supports the infrared photocell for anti-bumping function (optional)
    8. Supports the external and internal vehicle loop detector (optional)
    9. RS485 communication module (optional)
    10. Die-cast aluminum alloy machine core and advanced double-stage driving motor for solving mechanism block up
    11. Special art and craft makes out the most modernized and fashionable housing
    12. Safety photo electricity limit switch
    13. Boom with LED light (color is changeable with remote control)
    14. Cabinet with traffic light


    Model Selection and Differences


    Model

    Item

    WJDZ10713WJDZ10716
    Opening Time3S6S
    Boom TypeStraight, square-shaped
    Boom Length3M4M
    Voltage110V/220V
    Motor/PowerAC/120W
    Working Temperature-35℃ - 75℃
    Protection GradeIP44
    Remote Control Distance30M~100M

    Applications


    Barrier Gate with LED boom is installed with LED boom, and traffic light on the housing. When the boom rises up, the light turns green; when the boom falls down, the light turns red. Beside the LED, the boom is also installed with rubber below, which not only indicates the transit situation, but also protect vehicle from hitting.


    Specifications


    ModelWJDZ620
    Working Temperature-40℃~+75℃
    Voltage220V±10%, 110V±10%, 50/60HZ
    Rated power120W
    Relative humidity≤90%
    Remote control distance≥30m
    Net weight45kgs
    Speed3S, 6S
    Max boom length6 meters

    Company And Products Q&A


    Q: What's WEJOIN monthly production capacity for barrier gate?

    A: 3000 units.


    Q: As for the over-heating problem of barrier gate

    A: WEJOIN barrier gate has motor cooling fan which can solve the problem of over heating-protection. WJDZ601 and WJDZ701 don't have motor cooling fan, but the aluminum alloy housing of WJDZ601 can make the heat radiate quickly, and there’re shutters on the housing to let wind in.


    Q: Sometimes, Why the barrier boom would open automatically?

    A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.

    Q: What’s the remote control distance?

    A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. WEJOIN recommends using the remote control within 30 meters or 50 meters.

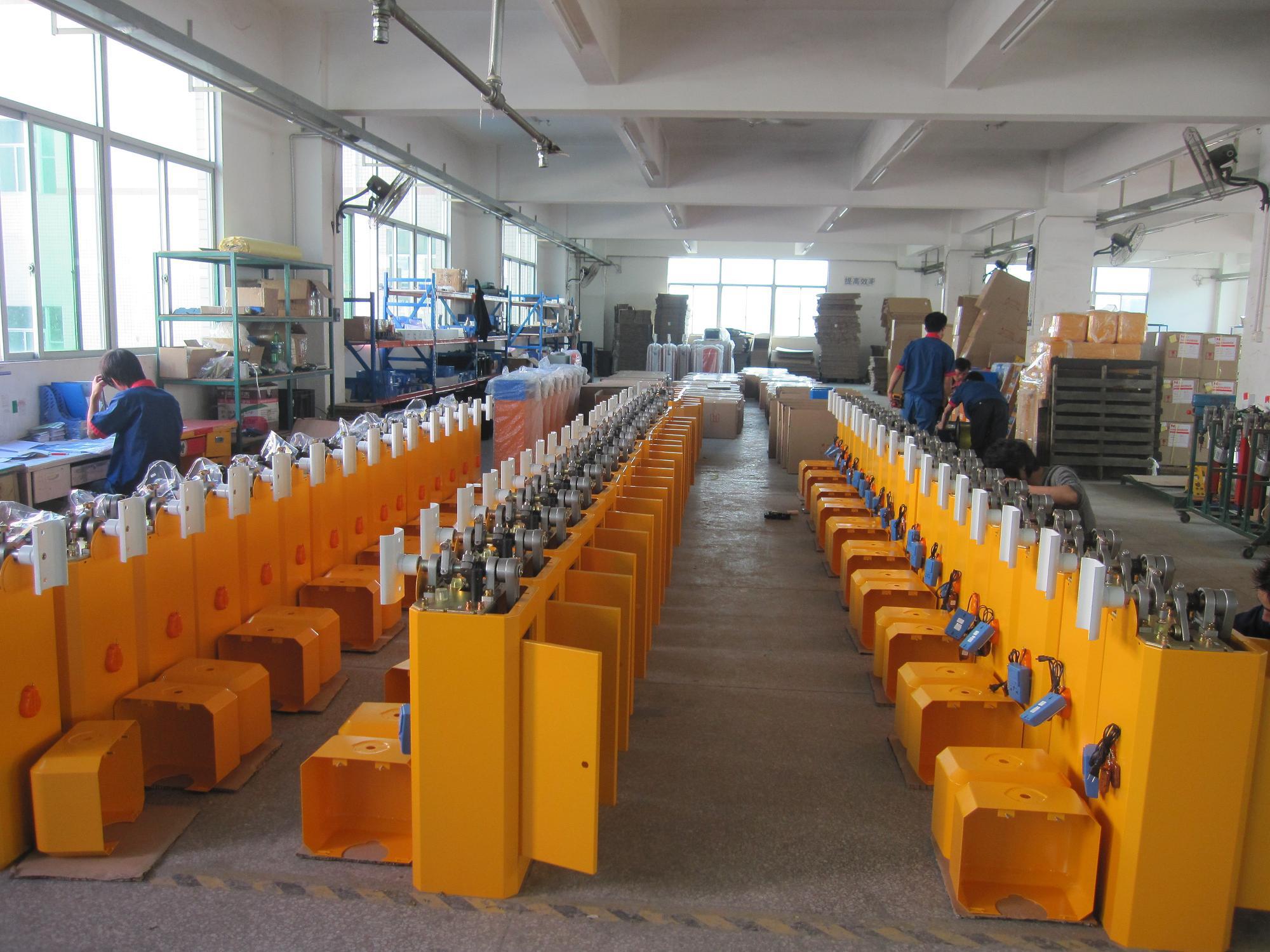

    Factory Preview
