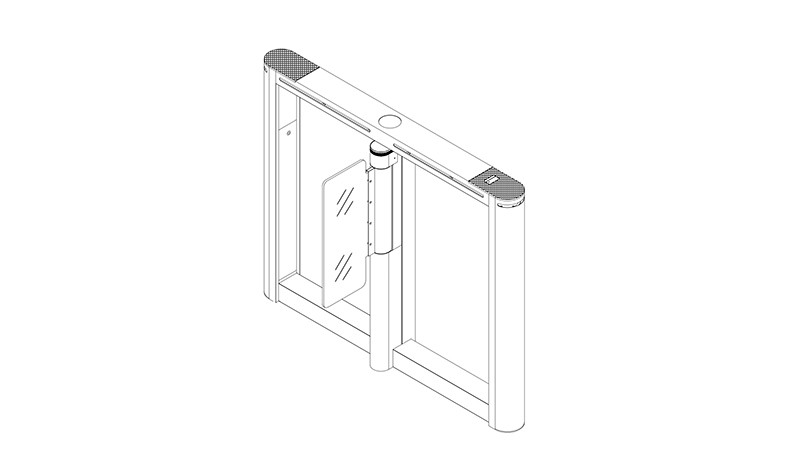

Stainless Steel Security Access Supermarket Entrance Turnstile 600mm

Stainless steel security access supermarket entrance swing barrier gate ​

Swing Barrier Gate Specifications

Swing Barrier Main Features

1. The system adopts servo control technology, detects the motor position in real-time, self-learns the load curve, has physical anti-pinch protection, and sensitivity can be adjustable.

2. Supports access mode settings such as card reader, free, and forbidden at entrances and exits.

3. It has access logic detection such as illegal intrusion, trailing passing, detention, reverse passing, and infrared anti-pinch.

4. Opening & Closing Speed can be adjustable.

5. RS232 communication, support Modbus protocol.

6. Opening when power off, DC12V backup battery optional.

7. Support voice function, trumpet optional.

Speed Gate Normally Opening and Fire Function

1. Normally opening Mode: Long press the card reader button for 5S or continuously connect the card reader signal port GND 5S, the swing barrier will enter the normally open mode (for the LO signal 5S is the exit normally open mode, and the RO signal 5S is the enter normally open mode). At this time, the swing barrier is opened (infrared judgment is invalid), the light is displayed green, and the buzzer and trumpet have no output. The signal is canceled, the swing barrier is closed, and the previous state is restored.

2. Fire Mode: When the auxiliary port Fire is connected to GND, the swing barrier will enter the fire mode state. At this time, the swing barrier is opened (infrared judgment is invalid), the light is displayed green, the buzzer sounds, and the voice broadcasts "Fire warning, please evacuate immediately". The signal is canceled, the swing barrier is closed, and the previous state is restored.

Founded in March 2004, Shenzhen WEJOIN is a national high-tech enterprise specialized in R&D, production, and sales of intelligent access control products. It has nearly 200 patented technologies. Its main products including commercial barrier gate, high-grade & mid-grade & eco-grade DC variable-frequency barrier gate, flap barrier, tripod turnstile, swing barrier, speed gate, etc., are suitable for the entry and exit management of vehicles and personnel such as high-speed toll gate, commercial plaza, residential areas, stations, customs checkpoints, etc.

Since 2017, Shenzhen WEJOIN has invested heavily in building intelligent robot production lines. Till now, it has formed nearly 30 intelligent robot production lines for the annual production capacity of 300,000 sets, with more than 160 sets of equipment. WEJOIN is the worldwide biggest production base for barrier gates. It has realized the automation of precisely die-casting, accessories processing, motor assembly, mechanism assembly, whole assembly, and packaging, etc. The comprehensive automation rate is more than 80%, of which more than 90% of the spare parts are produced by intelligent robots, assuring the consistency and stability of the product quality. In the future, Chinese enterprises will step up efforts to high-end manufacturing and high-quality development. WEJOIN will help the industry develop steadily through intelligent products and intelligent manufacturing of “double intelligence”.

WEJOIN has strong innovation and R&D capabilities, ultra-high technology, and craftsmanship, leading the industry into the era of intelligent variable speed interconnection. On September 20, 2021, WEJOIN launched a 3D barrier gate that achieved ultra-high-speed operation in 3D space. This is the industry's first, disruptive innovation, and historic breakthrough, representing WEJOIN's superior technical capabilities. From the birth of the first integrated barrier gate in 2004 to the launch of the 3D barrier gate in 2021, WEJOIN has carried out seven major technological changes of the barrier gate in 18 years, leading the continuous development of technology in the industry.

From raw materials to spare parts, as well to finished products, WEJOIN is currently the only domestic enterprise that adopts large-scale intelligent manufacturing in the entire industry chain. With the industry 4.0 standard as the goal, WEJOIN will realize informationized and unmanned production, continue to increase the development of new technology and the investment of intelligent automation equipment for barrier gates, improve the manufacturing accuracy, operating life, and stability of the barrier gates, and make them more convenient, more intelligent and more reliable.

Technological innovation, product quality, and manufacturing capabilities are the driving force of WEJOIN's continuous development. Brand, channels, and after-sales service are the pillars of WEJOIN's long-term development. WEJOIN has established sales and service organizations in more than 30 provinces and cities across China, providing high-quality products and services to more than 3,000 distributors and system vendors. WEJOIN products are sold all over the world. It has set up agency service outlets in more than 100 countries and regions including Mexico, Brazil, Britain, Malaysia, Turkey, Israel, India, Thailand, South Africa, etc. It is the largest barrier gate manufacturer in China with the largest export volume.

With superior product quality and a high-quality after-sales service system, "WEJOIN" has become a world-renowned brand of barrier gates. Stay true to the original aspiration, work hard, make every product with hearts, and build trustworthy WEJOIN quality in the world.
