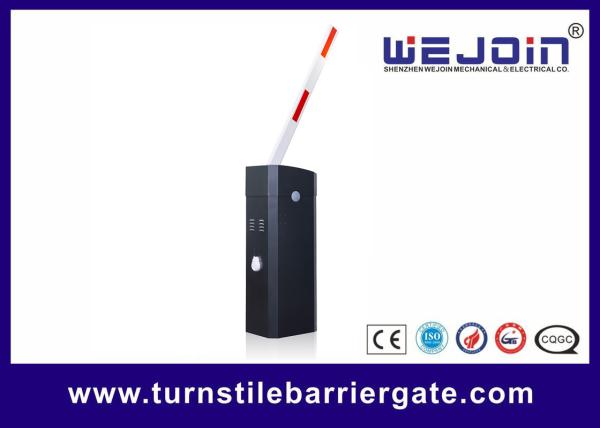

    Electric Parking Lot Security Gates , Parking Garage Gate Systems 150W AC 220V 110V

    Ask Lasest Price
    Brand Name : WEJOIN
    Model Number : WJDZ04SV
    Certification : CE ISO SGS
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 10000 sets/month
    Delivery Time : 3-5 working days after payment received
    • Product Details
    • Company Profile

    Electric Parking Lot Security Gates , Parking Garage Gate Systems 150W AC 220V 110V

    Electric parking lot arm barrier gate system car park boom gates


    Parking Barrier Gate Quick Detail

    WEJOIN Mid-Grade Servo Barrier Gate WJDZ04SV

    DC Brushless Servo Motor

    Higher Stability, Longer Service Life, and Easier Operation


    Parking Barrier Gate Application

    Suitable for indoor as well as an outdoor parking area
    Parking lots, goods yard, railway crossing, commercial premises, apartment block access shopping malls,

    hospitals, stadiums, business centers, etc.


    Parking Barrier Gate Technical Data

    Model

    WJDZ04SV1 (speed 3~5s adjustable)

    Running Speed

    3S

    4S

    5S

    5S

    5S

    5S

    Boom-Type

    Straight

    Straight

    Straight

    90° Folding

    2 Fence

    3 Fence

    Max Boom Length

    4.5M

    5M

    6M

    5M

    4.5M

    4M

    Model

    WJDZ04SV2 (speed 1.5~5s adjustable)

    Running Speed

    1.5s

    2/3/4/5s

    5s

    5s

    5s

    Boom-Type

    Straight

    Straight

    90° Folding

    2 Fence

    3 Fence

    Max Boom Length

    3.5m

    4.5m-6m

    4m

    4.5m

    4m

    Housing Dimension

    362*325*1030mm

    Input Voltage

    AC220V±10%,AC110V±10%

    Frequency

    50/60HZ

    Motor Voltage

    DC310V

    Enclosure Rating

    IP54

    Working Temperature

    -35°C~+85°C

    MTBF

    5000000 times

    Traffic Flow Application

    3000 times/24hours

    Max Motor Power

    150W

    Max Motor Speed

    24r/min

    Max Torque

    240N.m


    Parking Barrier Gate Functions & Features

    1). DC permanent magnet synchronous motor(PMSM), servo control.
    2). The motor has the same performance as the main motor of the CNC machine tool and the electric vehicle motor, it has high control precision, high torque density, good torque balance, low power consumption, high efficiency, and low noise.
    3). Bi-direction boom holder design: left-installation and right-installation can be exchanged easily and quickly.
    4). Manual clutch design: when power-of, turn the handwheel a little, then move the boom by hand.
    5). Double tension spring crank transmission design, for a more stable and reliable structure.
    6). No limit switch design, accurate encoder detection, detecting boom position when power on. And open/close speed is adjustable.
    7). More sensitive and reacting faster when reversing on obstacles.
    8). With counting, delay auto-closing, and auto-aging test function.
    9). 4-digit digital tube display displays more information.
    10). NO/NC wire control signal input is optional.
    11). Integrated RS485 communication, infrared photocell, and loop detector interface. RJ45 network, loop detector, and radar module can be added.
