    Outdoor Pedestrian Security Tripod Turnstile Gate Systems With Card Reader

    Ask Lasest Price
    Brand Name : WEJOIN
    Model Number : WJTS112
    Certification : ISO 9001:2008, CE, SGS
    Price : negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 1, 000 set/month
    Delivery Time : 3-15 days depending on the quantity
    • Product Details
    • Company Profile

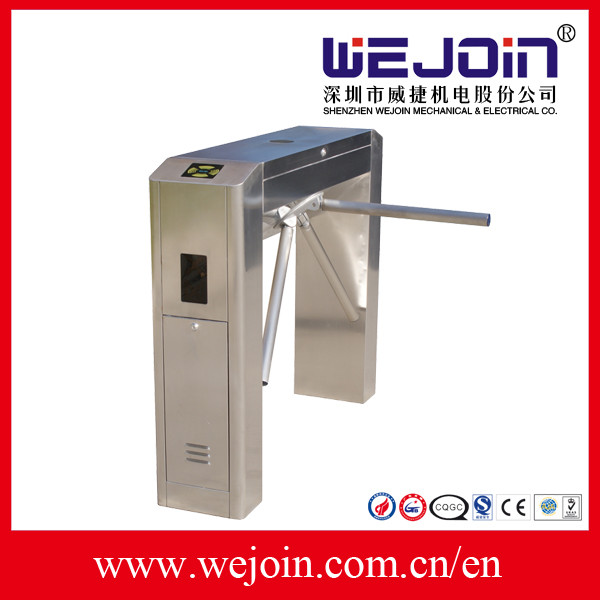

    Outdoor Pedestrian Security Tripod Turnstile Gate Systems With Card Reader

    Outdoor pedestrian security tripod turnstile Barrier Gate with card reader


    Turnstile barrier Gate Introduction


    This series of 304 stainless steel entrance tripod turnstile adopt the unique technology of our company---the precise photo electricity limit and gear to orient the closure. The 304 stainless steel entrance tripod turnstile be unlocked and reset because of the specific motor. The closure is very precise and stable. This series of 304 stainless steel entrance tripod turnstile adopt standard electricity socket. It can read boom code card, ID card, IC card and so on.


    Turnstile barrier Gate Function and Features

    Full-automatic
    1. Stainless steel house or cold rolling iron painted
    2. Card reader available, support WEIGNAD 26/34 communication card reader.
    3. Bi-direction pass &any single-direction pass (adjustable
    4. Arm auto drop when power off
    5. Arm auto rise up when power on and auto stop on obstacle
    6. Traffic light indicator Pass direction indicator
    7. Alarm available (optional function)
    8. Remote control available (optional function


    Semi-automatic

    1) Exquisite rotating plate and a self-lock mechanism

    2) Passable for bi-direction

    3) Self-locking within 5 seconds

    4) Arm auto dropping when power off

    5) Avoid unauthorized access

    6) Counter output


    Turnstile barrier Gate After-sale Service

    1 year warranty

    Lifetime Service with charge accordingly


    Turnstile barrier Gate Technical Data

    Model

    WJTS112

    WJTS112S

    Driving Model

    Full-automatic

    Semi-automatic

    Material of housing

    304 Stainless Steel

    Dimension of housing

    (L*W*H mm)

    1235*280*1000

    1220*280*980

    Thickness of housing

    1.5mm

    Length of pole

    490mm

    Net weight

    70kg

    40 kg

    Max load-bearing of pole

    80kg

    Driving force of pole

    3kg

    Rotating direction

    Double direction

    Power supply

    220V±10%, 110V± 10%

    Frequency

    50/60HZ

    Working voltage of motor

    DC12V

    Rated power

    50W

    36W

    Driving motor

    Brush DC motor

    Brushless DC Motor

    Input interface

    DC12V electrical level signal, more than 10ms, or

    DC12V impulse signal driveling current, more 10mA

    dry contact with the pulse between 200ms~500ms

    Transit speed

    25~32 persons/min

    30~45 persons/min

    Working temperature

    -25°C~55°C

    Working environment

    Indoor / Outdoor (Shelter)

    Relative humidity

    ≤95%


    Outdoor Pedestrian Security Tripod Turnstile Gate Systems With Card Reader
