    Card Reader Access Parking Barrier Gate Bi - Direction Boom Holder Design

    Ask Lasest Price
    Brand Name : WEJOIN
    Model Number : CB02
    Certification : CE ISO SGS
    Price : negociate
    Payment Terms : T/T, Western Union
    Supply Ability : 10000 sets/month
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

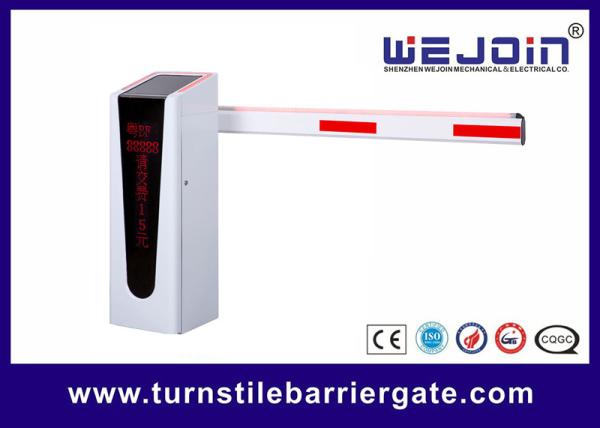

    Card Reader Access Parking Barrier Gate Bi - Direction Boom Holder Design

    0.4S~0.9s LED square boom car parking gate barrier card reader access


    Parking Barrier Gate Brief Introduction:

    WEJOIN Commercial Servo Barrier Gate WJCB02

    Fastest running speed can be 0.4 second (model WJCB02E, 0.4~0.9s adjustable), 100% duty cycle and free-maintenance make the barrier be proper for toll station and parking system!


    Parking Barrier Gate Applications:

    • station

    • highway toll gate

    • high-grade residential area

    • commercial parking lots

    • enterprises and institutions

    • commercial Plaza


    Parking Barrier Gate Features:

    1. Servo control: DC permanent magnet synchronous motor(PMSM)

    2. Superior performance: high control precision, high torque density, good torque balance, low power consumption, high efficiency, less heat and low noise.

    3. Bi-direction boom holder design: left-installation and right-installation can be exchanged easily and quickly.

    4. Electronic clutch design: more convenient to unclck or lock the motor when power off.(patented technology)

    5. Three tension spring crank transmission design: for more stable and reliable structure.(patented technology)

    6. No limit switch design: accurate encoder detection, detecting boom position when power on. And open/close speed is adjustable.

    7. More sensitive and reacting faster.

    8. With counting, delay auto-closing, auto-aging test function.

    9.LCD display.

    10.NO/NC wire control signal input are optional.

    11.Integrated RS485 communcation, RJ45 network, infrared photocell, loop detector interface, radar module and more secondary development.


    CB02ESeries Boom Length and Speed Selection

    Model

    CB02E (0.5-0.9S)

    Boom Type

    Carbon Fiber Round Boom

    Boom Length

    ≤2M

    ≤3M

    Passing Speed

    0.5/0.7/0.9S

    0.9S

    Running Speed

    0.5/0.7/0.9S

    0.9S


    Parking Barrier Gate Technical Data:

    Model

    WJCB02E

    Running Speed

    0.4S

    0.6s

    0.9s

    Boom Type

    Carbon Fiber Straight

    Max Boom Length

    2m

    3m

    3.5m

    Input Voltage

    AC 220V±10%, AC110V

    Motor Voltage

    DC310V

    Enclosure Rating

    IP54

    Working Temperature

    -35°C~+85°C

    MTBF

    10000000 times

    Duty Cycle

    100%

    Traffic Flow Application

    24 hours uninterrupted operation

    Max Motor Power

    300W

    Max Motor Speed

    90r/min

    Max Torque

    480N.m
