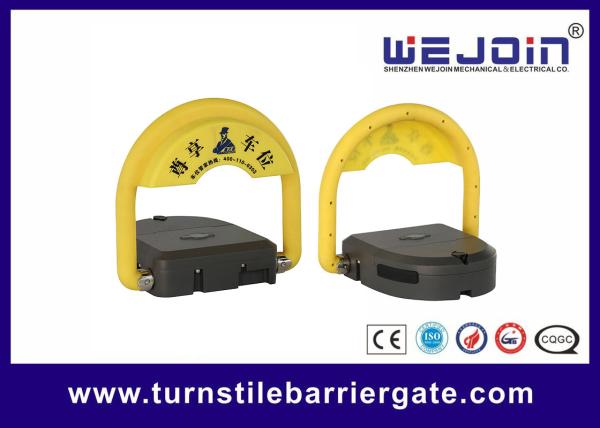

parking lot equipment Remote Control car Parking

Park Lock Technical Specification

Standard Voltage: DC12V

Battery Voltage: DC12V, 7Ah

Dimension: 357*370*82.5MM

Operational Current: 0.4A

Up to Down Time: 4~6 Seconds

Vertical Position Height: 340MM

Horizontal Position Height: 82.5MM

Remote Control Distance: 15M

Working Temperature: -35°c~+55°c degree centigrade

Maximum Bearing Weight: 5 tons

Protection Grade: IP68

Parking Lock Product Description
1. Energy-saving
2. Safe & Hermetic
3. Intelligent self re-positioning
4. Noise-free & Burglarproof

Parking Lock Functions & Features:

1. Energy-saving; the battery is a best product in China and the power in it will last for half a year.

2. Safe; the power connection is anti-disconnecting design in case that the user misplaces the battery causing short circuit; battery installation is easy.

3. Durable; the cabinet is made of die-casted Zinc alloy with high quality, and the maximum weight of load-bearing is 5 tons; the cabinet is coated with varnish, being water-proof and anti-rust in harsh weather. The sway arm is made of fiber-reinforced nylon, and it will not deform even after car crushing.

4. Hermetic; the cabinet is tightly closed, and Protection Grade is IP68. It is waterproof and dustproof. It can be used broadly.

5. Auto re-positioning; the external force could not change the sway arm position when it is vertical; when the sway arm is forced to a horizontal position, it will re-position vertically, unless the user uses remote control to put it horizontally.

6. Noise-free; bearing transmission design of the motor makes almost zero noise. It is beneficial
for battery and motor longevity and lesser friction.
7. Burglarproof; the mounting bolts are placed inside of the cabinet. No one can open it without
key.
8. Easy Installation: four prepared holes at the bottom of the cabinet makes it easy to install.
