    80W Straight Arm Automatic Boom Gate Loop Detector Photocell

    Ask Lasest Price
    Brand Name : WEJOIN
    Model Number : DZ201
    Certification : CE ISO SGS
    Price : negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 10000 sets/month
    Delivery Time : 12 working days after payment received
    • Product Details
    • Company Profile

    80W Straight Arm Automatic Boom Gate Loop Detector Photocell

    Straight arm automatic boom gate


    Product information

    The DZ201 intelligent barrier gate is one type of our company’s products with the latest technological design to realize automatic and intelligent operation. Furthermore, the unique clutch device and the balance device have made the barrier gate become more reliable.


    Functions and features

    1.- Housing color: red, blue (optional)

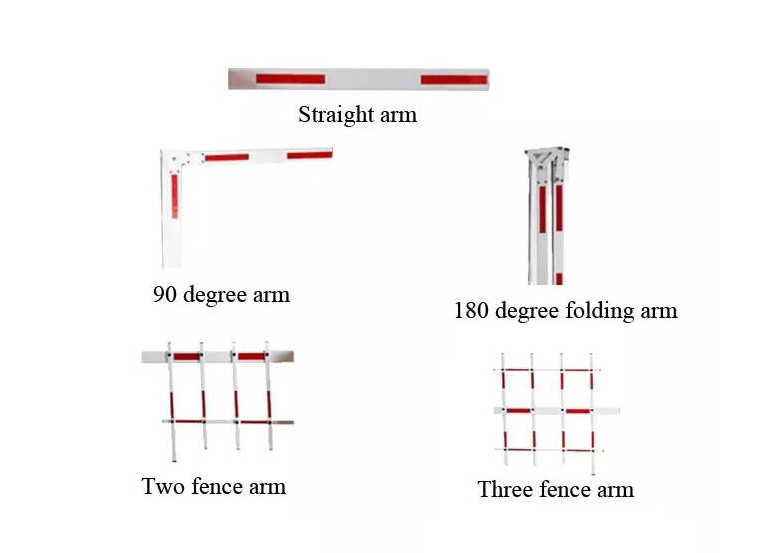

    2.- Boom arm direction can be chosen leftward to rightward.
    3.- Auto warming up, suitable for a cold environment.
    4- Controlling way: wireless or wiring multiple push-button for OPEN, CLOSE, STOP function.


    Mechanical adjustment and usage

    1. When the barrier is at the up limit position

    1.1 If the boom is not vertical, as figure 7 shows.

    A. Adjust the shock absorption screw1 to reduce the pressure of the shock absorption cushion, after this operation, if it is vertical, then screw tight the screw, if not, then repeat the operation.

    B. Loosen the screws on the end of the connecting rod, adjust the connecting rod to make the boom vertical, then fix the boom.

    1.2 The boom vibrates too much

    Rotate the balance spring screw clockwise to increase the tension of the spring.


    Working environment and data

    Voltage220V±10%, 110V±10%
    Frequency50/60 Hz
    Motor voltage220V
    power80W
    Protection gradeIP44
    Net weight60 Kg


    80W Straight Arm Automatic Boom Gate Loop Detector Photocell
