Home > Boom Barrier Gate >

High Speed Vehicle Entrance Security Gate Barrier Systems For Hospital , Building

Shenzhen Wejoin Mechanical & Electrical Co.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap High Speed Vehicle Entrance Security Gate Barrier Systems For Hospital , Building from wholesalers

    Buy cheap High Speed Vehicle Entrance Security Gate Barrier Systems For Hospital , Building from wholesalers
    • Buy cheap High Speed Vehicle Entrance Security Gate Barrier Systems For Hospital , Building from wholesalers

    High Speed Vehicle Entrance Security Gate Barrier Systems For Hospital , Building

    Ask Lasest Price
    Brand Name : WEJOIN
    Model Number : WJDZ801
    Certification : CE,ISO
    Price : negotiation
    Payment Terms : T/T,L/C,Western Union
    Supply Ability : 5000 units/weeke
    Delivery Time : 1-20 days
    • Product Details
    • Company Profile

    High Speed Vehicle Entrance Security Gate Barrier Systems For Hospital , Building

    High Speed Vehicle Entrance Security Gate Barrier Systems For Hospital , Building


    Quick Detail:

    1. Name: Boom barrier gate

    2. Application: Parking system

    3. Speed:1.5/3/6 second

    4. Feature: Limte state signal

    5. Rated Power:80W

    6. Certificate:CE, ISO,

    7. Net Weight:50KG

    8. Voltage:AC220V, AC110V


    Description:

    Model Selection and Differences

    Model(WJDZ) Item

    801-11

    801-13

    801-16

    801-23

    801-26

    801-33

    801-36

    801-46

    801-56

    Running Time

    1.5s

    3s

    6s

    3s

    6s

    3s

    6s

    6s

    6s

    Boom Type

    Straight

    90°folding

    180°folding

    2fencing

    3fencing

    Max Boom Length

    3m

    4.5m

    6m

    3m

    5m

    3m

    5m

    4.5m

    4m

    Boom dimension(W*H)

    45*80mm

    45*100mm

    Boom weight

    3kg

    4.5kg

    6kg

    6.5kg

    8kg

    9kg

    11kg

    7kg

    7kg

    Voltage

    220V/110V

    Motor voltage

    220v

    Frenquency

    50/60HZ

    Protection Grade

    IP44

    Working Temperature

    -35℃~+60℃

    Power

    80w


    Functions & Features:

    1. Open the barrier gate by motor wheel when power off and automatic locking when power on

    2. Balanced boom running with a motor transmission of cranks and shafts

    3. Boom with protective rubber band

    4. Interface for traffic light

    5. Infrared photocells interface is available

    6. Loop detector interface is available

    7. Well-integrated with car parking system equipments, with wire control (push button)

    8. Offering dry contact signal for car parking system (COM, NC, NO)

    9. Auto-reverse when the boom meets obstruction

    10. Auto-delay when closing (adjustable)

    11. Remote control frequency: 315 MHz, 418MHz, 433MHz

    12. Remote control to operate the barrier gate

    13. Wheel manual release. In case of power off,rotate the wheel manual release on the bottom of the motor to raise the boom manually,when power on,the motor will work normally.


    Applications:

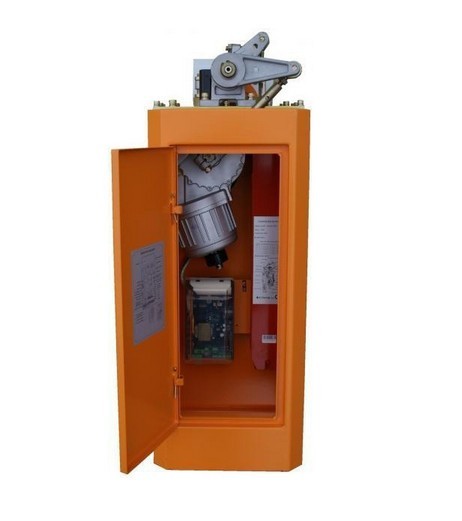

    Barrier Gate uses the third generation motor. It is stable and has long service life performance, running one million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used in door and outdoor.


    Specifications

    Model

    WJDZ801

    Working Temperature

    -35℃~+60℃

    Voltage

    220V±10%, 110V±10%, 50/60HZ

    Rated power

    80W

    Relative humidity

    ≤90%

    Remote control distance

    ≥30m

    Net weight

    50kgs

    Speed

    1.5S, 3S, 6S

    Max boom length

    6 meters


    High Speed Vehicle Entrance Security Gate Barrier Systems For Hospital , Building
